Magento 1 Integration

Magento 1 Setup Guide, this page provides step-by-step guidance on obtaining credentials, which are essential for the setup process.

Last updated 6 months ago

What is Magento

Magento is an open-source e-commerce platform that provides businesses with a flexible and customisable solution for creating and managing online stores. It offers many features, including product catalogue management, order processing, payment and shipping options, and customer management. Magento is known for its scalability and flexibility, allowing businesses to create custom solutions and add functionality. It also provides a range of customisation options for website design and layout, making it possible for companies to create unique and visually appealing online stores. Magento is supported by a large community of developers and users, providing businesses access to a wealth of resources and support. Overall, Magento is a comprehensive and flexible e-commerce solution that provides businesses with the tools to create and manage successful online stores.

Obtaining your API Keys from Magento V1

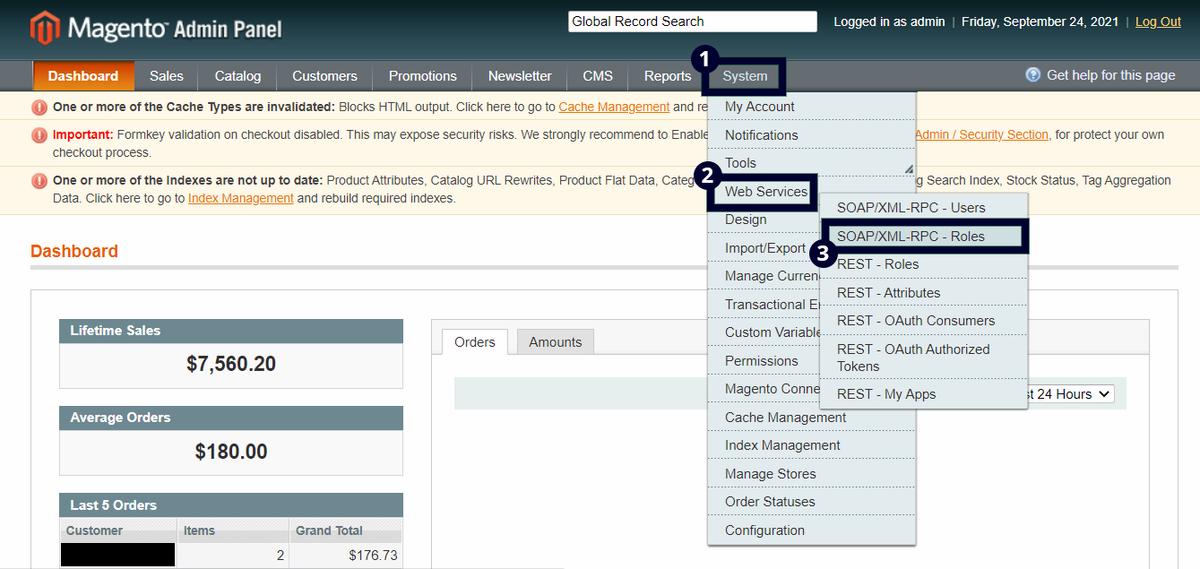

  1. Go to the Panel Menu and select "System > Web Services > SOAP/XML-RPC - Roles".

  2. Click on "Add New Role" to create a new role.

  3. Provide a name for the new role and enter the current admin password.

  4. Move to the "Role Resources" tab and set "Resource Access" to "All". Save the new role by clicking on "Save Role".

  5. Return to the Panel Menu and select "System > Web Services > SOAP/XML-RPC - Users".

  6. Click on "Add New User" to create a new user.

  7. Fill in the required fields with the necessary information, ensuring that the "User Name" and "API Key" fields have values that are easy to remember.

  8. Choose the role you created earlier in the "User Role" field and click the "Save User" button to complete the process. The new user with the specified role is now ready for integration.

Click to Maximise the Image.

Installing the Magento 1 Sales Channel

To add the Magento 1 sales channel to your Neuro account, kindly adhere to the following steps:

  1. Access your account and go to the left side of the screen. Click the "Stores" button.

  2. If you already have a store, click "View Store" on the right side of the screen to access it.

  3. To edit an existing store, click the edit button on the right side. If you need to create a new store, click "+ ADD" above, name it, and use the edit button to make changes.

  4. Click "+ ADD" in the channels section to begin the installation.

  5. A window will appear in the centre of the screen. Choose "Magento 1" from the available channels list.

  6. Provide the required information:

    • Channel Name: In the field provided, you can enter any name. However, it is recommended that you choose a name that has meaning to you, such as "Magento 1," as it will serve as an apparent reference for the source of the order in the future.

    • Domain URL: In this field, input the URL you use to access your Magento platform, also known as the domain.

    • SOAP API Username & Key: Enter the tokens you've set on the Magento platform earlier.

  7. After filling out the fields, customise other options, then click "Save" in the bottom-right corner.

  8. You'll be back in the recently installed channel. Activate it at the top of the screen using the "Is Active" button.

Congratulations! You've successfully set up your Magento 1 sales channel on Neuro.

You can now sell products on Magento 1 and manage orders from your Neuro dashboard.

Click to Maximise the Video.

For additional support, contact the Neuro Support Team.
